7 Inch For 1024x600 HDMI Signal Tft Display With Capacitive Touch Screen
General Description:
H070WS50-T1 display resolution is 1024RGB×600, its display area size is 154.08×85.92 (width × height) mm, the outline dimension is 165.30×121.00×7.75mm.color numbers is 16.7M,support Android/Win7/Win8/Win10 System.Package includes: 7 inch Touch LCD Display x1, HDMI cable x1, USB cable x1.
Specifications:
| Item of general information | Contents | Unit |
| LCD Display Size(Diagonal) | 7 | inch |
| LCD Display Type | TFT/TRANSMISSIVE | - |
| LCD Display Mode | Normally White | - |
| Recommended Viewing Direction | 12 | o’clock |
| Gray inversion Direction | 6 | o’clock |
| Module size (W×H×T) | 165.30×121.00×7.75 | mm |
| Active area (W×H) | 154.08×85.92 | mm |
| Number of pixels(Resolution) | 1024RGB×600 | pixel |
| Pixel pitch (W×H) | 0. 1506×0. 1432 | mm |
| Color Pixel Arrangement | RGB Stripe | - |
| LCD Driver IC | TBD | - |
| Module Interface Type | HDMI(Display)&USB(touch) | - |
| System Support | Android/Win7/Win8/Win10 | |
| Module Input voltage | 5.0V | V |
| Module Power consumption | TBD | mW |
| Color Numbers | 16.7M | - |
| Backlight Type | White LED | - |
Absolute Maximum Ratings:
| Parameter of absolute maximum ratings | Symbol | Min | Max | Unit |
| LCD supply voltage | VDD | -0.5 | 5.0 | V |
| Operating temperature | Top | -20 | 70 | ℃ |
| Storage temperature | Tst | -30 | 80 | ℃ |
| Humidity | RH | - | 90%(Max 60℃) | RH |
Ctp Characteristics:
| Item of CTP characteristics | Specification | Unit | Remark |
| Panel Type | Glass Cover + Glass Sensor | - | - |
| Resolution | 1024 × 600 | pixel | - |
| Surface Hardness | ≥6H | - | - |
| Transparency | ＞82% | - | - |
| Driver IC | TBD | - | - |
| Interface Type | USB | - | - |
| Support Points | 5 | - | - |
| Sampling Rate | 20~100 | Hz | - |
| Supply voltage | 3.3 | V | - |
Optical Specification:
| Item of electro-optical characteristics | Symbol | Condition | Min. | Typ. | Max. | Unit |
| Response time | Tr+Tf | θ=0 ∅=0 Ta=25℃ | - | 25 | 40 | ms |
| Contrast Ratio | CR | - | 400 | - | - |
| Luminance uniformity | WHITE | - | 80 | - | % |
| Surface Luminance | Lv | - | 300 | - | cd/m2 |
| CIE (x, y) chromaticity | White | White x | θ=0 ∅=0 Ta=25℃ | - | 0.302 | - | - |
| White y | - | 0.338 | - |
| Red | Red x | - | 0.606 | - |
| Red y | - | 0.325 | - |
| Green | Green x | - | 0.303 | - |
| Green y | - | 0.567 | - |
| Blue | Blue x | - | 0. 147 | - |
| Blue y | - | 0. 161 | - |
| Viewing angle range | ∅=90(12 o’clock) | CR ≥ 10 | - | 80 | - | deg |
| ∅=270(6 o’clock) | - | 80 | - | deg |
| ∅=0(3 o’clock) | - | 80 | - | deg |
| ∅=180(9 o’clock) | - | 80 | - | deg |
| NTSC ratio | - | - | - | 50 | - | % |
Connection Examples:
Working With Raspberry Pi 4
Working With Raspberry Pi 3B+
Working With Raspberry Pi Zero W

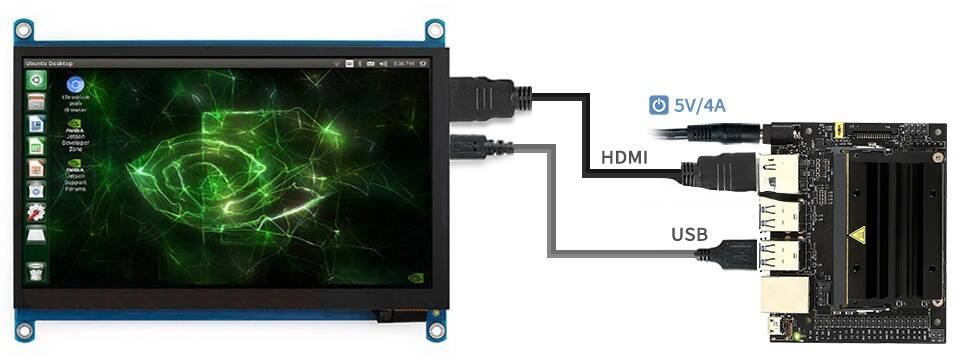

Working With AI Computer Jetson Nano
Working With Mini PC
Display:IPS Panel
Handling Precautions:
1.Design the length of cable to connect between the connector for back-light and the converter as shorter as possible and the shorter cable shall be connected directly , The long cable between back-light and Converter may cause the Luminance of LED to lower and need a higher startup voltage.
2.Be careful for condensation at sudden temperature change. Condensation makes damage to polarizer or electrical contacted parts. And after fading condensation, smear or spot will occur.
